BC1

Product details

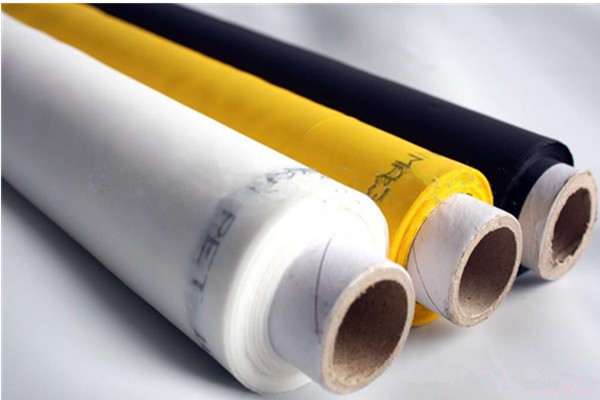

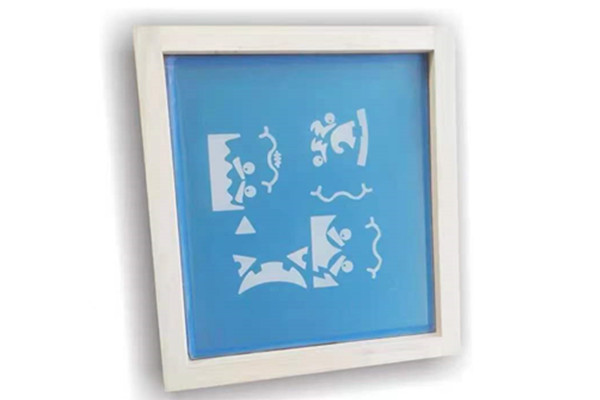

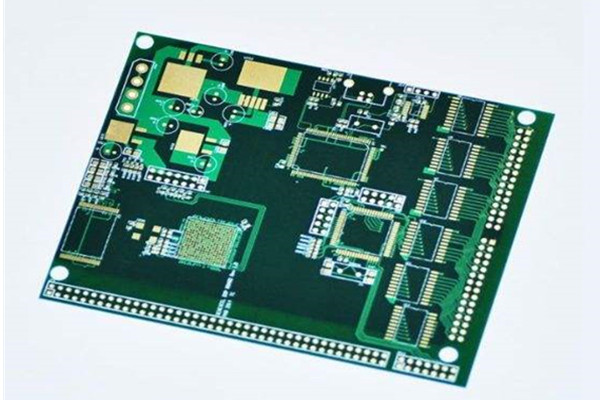

The bolting cloth we offer are made of high quality polyester monofilament as raw material and are all produced by Swiss Sulzer machines. Our products have the characteristics of high tension, low elongation, uniform mesh and stable tension, which are widely used in many flat printing industries such as printed circuit board, textile printing, ceramic printing, glass printing, etc. to meet the needs of different customers.

ITEM	MESH (INCH)	THREAD DIAMETER (UM)	MESH OPENING (UM)	OPEN AREA (%)	THICKNESS (UM)	INK VOLUME (CN3/M2)
10T	25	250	766	57	387	221
15T	38	200	468	49	360	176
15T	38	250	418	39	432	168
18T	46	150	402	53	221	117
20T	50	150	358	50	245	123
24T	60	100	323	58	136	79
24T	60	120	303	51	198	101
24T	60	150	273	42	250	105
28T	70	100	263	52	148	77
30T	76	120	214	41	216	89
32T	81	70	244	60	98	59
32T	81	100	214	46	150	69
32T	81	120	194	38	217	82
34T	86	100	195	44	150	66
36T	91	100	179	41	151	62
39T	100	55	199	61	80	49
39T	100	70	184	52	104	54
39T	100	80	174	47	113	53
43T	110	80	151	43	120	52
47T	120	55	157	55	83	46
47T	120	64	148	49	94	46
47T	120	70	142	45	105	47
49T	125	70	133	43	106	46
51T	130	55	140	52	84	44
51T	130	70	125	41	105	43
53T	135	55	133	50	84	42
54T	137	64	121	43	99	43
54T	137	70	115	39	106	41
59T	150	55	114	46	84	39
59T	150	64	105	39	99	39
61T	155	55	109	44	84	37
61T	155	64	100	37	97	36
64T	160	55	104	43	85	37
64T	160	64	95	36	100	36
68T	175	55	90	39	85	33
68T	175	64	81	31	100	31
71T	180	48	93	44	69	30
71T	180	55	86	37	85	31
77T	195	55	75	33	86	28
80T	200	48	79	39	71	28
90T	230	48	62	32	72	23
100T	250	40	62	37	56	21
110T	280	40	51	31	58	18
120T	300	34	51	36	50	18
120T	300	40	45	28	61	17
140T	350	31	42	33	48	16
140T	350	34	39	29	53	15

ITEM	MALLA (INCH)	DIAMETRO DE HILO (UM)	MALLA APERTURA(UM)	ABIERTO ÁREA(%)	ESPESOR (UM)	VOLUMEN DE TINTA(CN3/M2)
10T	25	250	766	57	387	221
15T	38	200	468	49	360	176
15T	38	250	418	39	432	168
18T	46	150	402	53	221	117
20T	50	150	358	50	245	123
24T	60	100	323	58	136	79
24T	60	120	303	51	198	101
24T	60	150	273	42	250	105
28T	70	100	263	52	148	77
30T	76	120	214	41	216	89
32T	81	70	244	60	98	59
32T	81	100	214	46	150	69
32T	81	120	194	38	217	82
34T	86	100	195	44	150	66
36T	91	100	179	41	151	62
39T	100	55	199	61	80	49
39T	100	70	184	52	104	54
39T	100	80	174	47	113	53
43T	110	80	151	43	120	52
47T	120	55	157	55	83	46
47T	120	64	148	49	94	46
47T	120	70	142	45	105	47
49T	125	70	133	43	106	46
51T	130	55	140	52	84	44
51T	130	70	125	41	105	43
53T	135	55	133	50	84	42
54T	137	64	121	43	99	43
54T	137	70	115	39	106	41
59T	150	55	114	46	84	39
59T	150	64	105	39	99	39
61T	155	55	109	44	84	37
61T	155	64	100	37	97	36
64T	160	55	104	43	85	37
64T	160	64	95	36	100	36
68T	175	55	90	39	85	33
68T	175	64	81	31	100	31
71T	180	48	93	44	69	30
71T	180	55	86	37	85	31
77T	195	55	75	33	86	28
80T	200	48	79	39	71	28
90T	230	48	62	32	72	23
100T	250	40	62	37	56	21
110T	280	40	51	31	58	18
120T	300	34	51	36	50	18
120T	300	40	45	28	61	17
140T	350	31	42	33	48	16
140T	350	34	39	29	53	15
